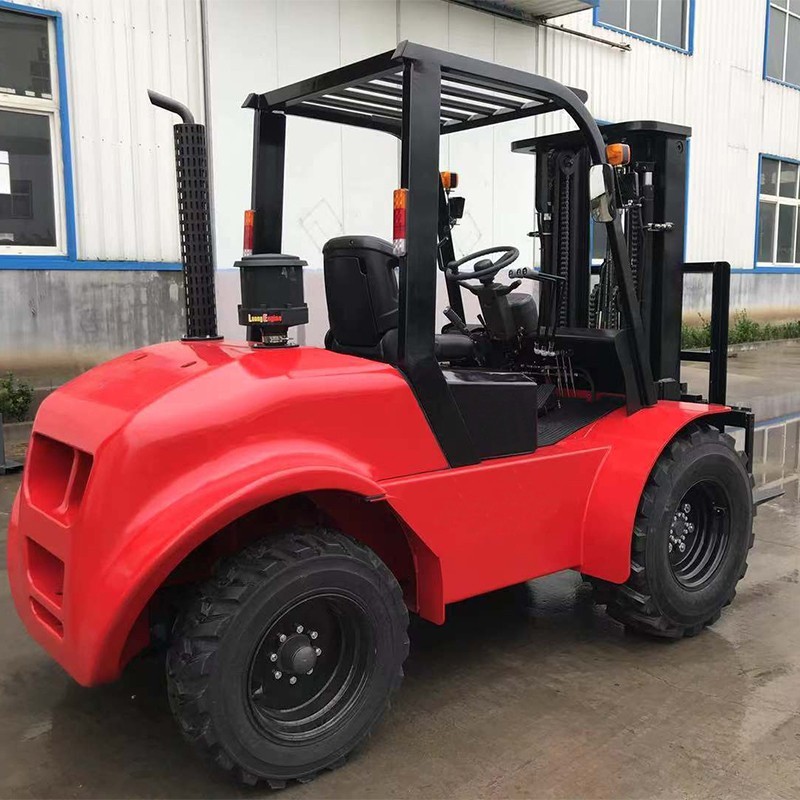

2WD 3吨越野柴油叉车，配备日本发动机，伸缩臂叉车
1. Cleaning: Regularly remove dust, mud, and dirt from the forklift, especially on the fork frame, gantry slide, generator, starter, battery electrode, fork column, water tank, air filter, and other parts.
2. Check fasteners: Regularly check and tighten the fork frame support, lifting chain tensioning screws, wheel screws, wheel fixing pins, brakes, steering screws, and other parts to ensure that they are not loose.
3. Check the steering system: Check the stability and reaction speed of the steering system to ensure that the steering is flexible and there is no abnormal sound.

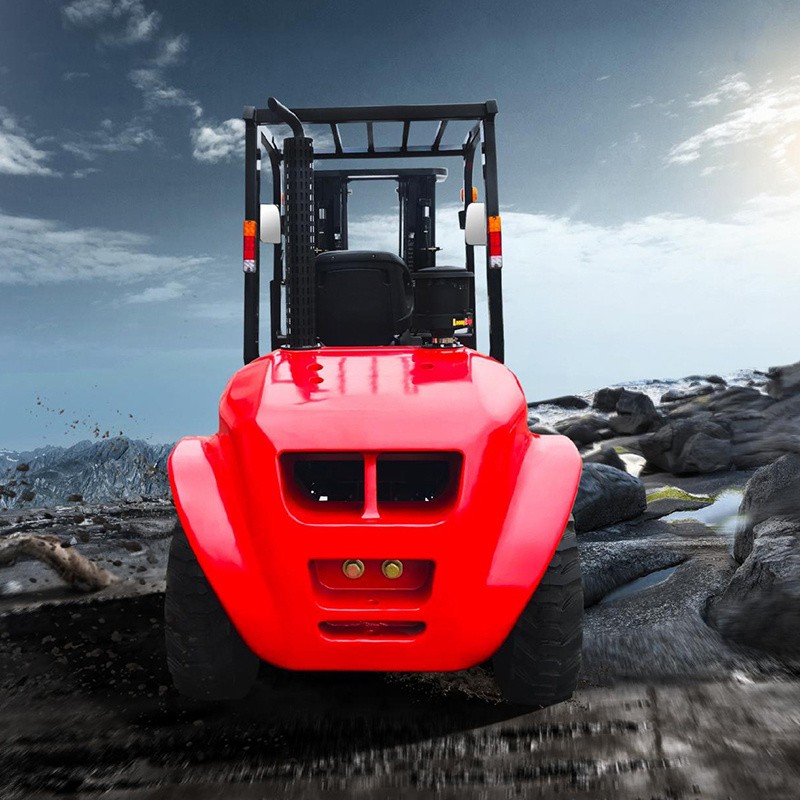

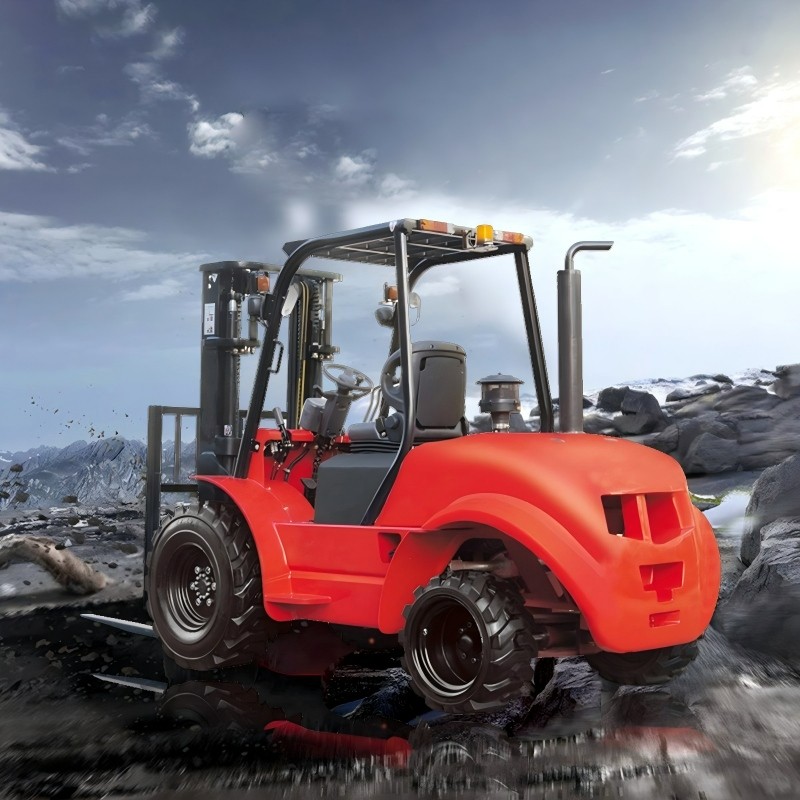

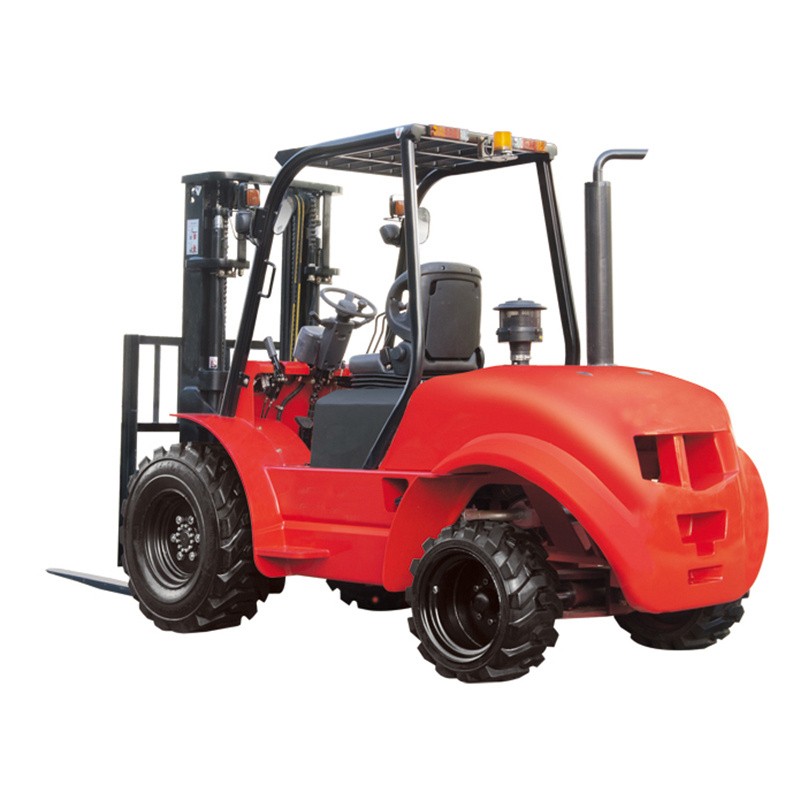

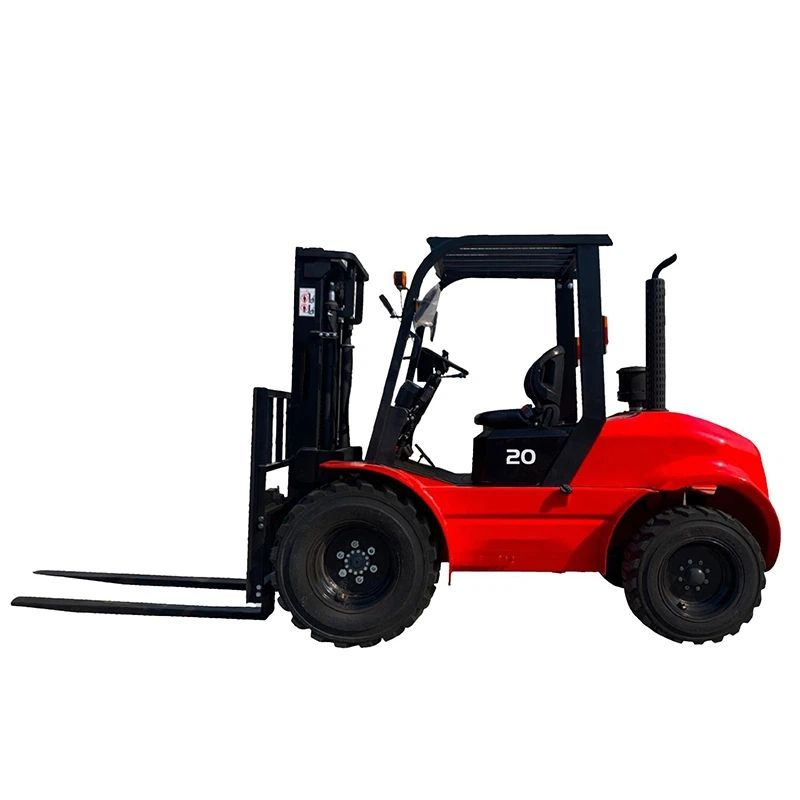

2-Ton All-Terrain Diesel Forklift
Model: FD20SName: 2WD rough-terrain diesel forklift
Load capacity: 2000 kg
Lift Height: 3000 mm
Load center: 500 mm
Engine: XINCHAI/ISUZU/MITSUBISHI
 |
Rough Terrain Diesel Forklift Description
|
 |
 |
 |
|
Between the integrated roof guard frame and the frame, four shock pads are used to form the second level of shock absorption, and the full suspension seat can effectively reduce the fatigue of the driver. |
|

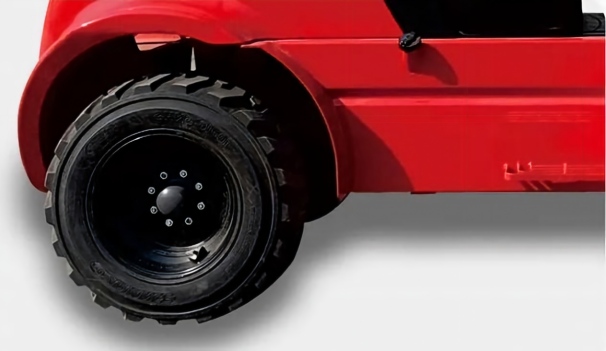

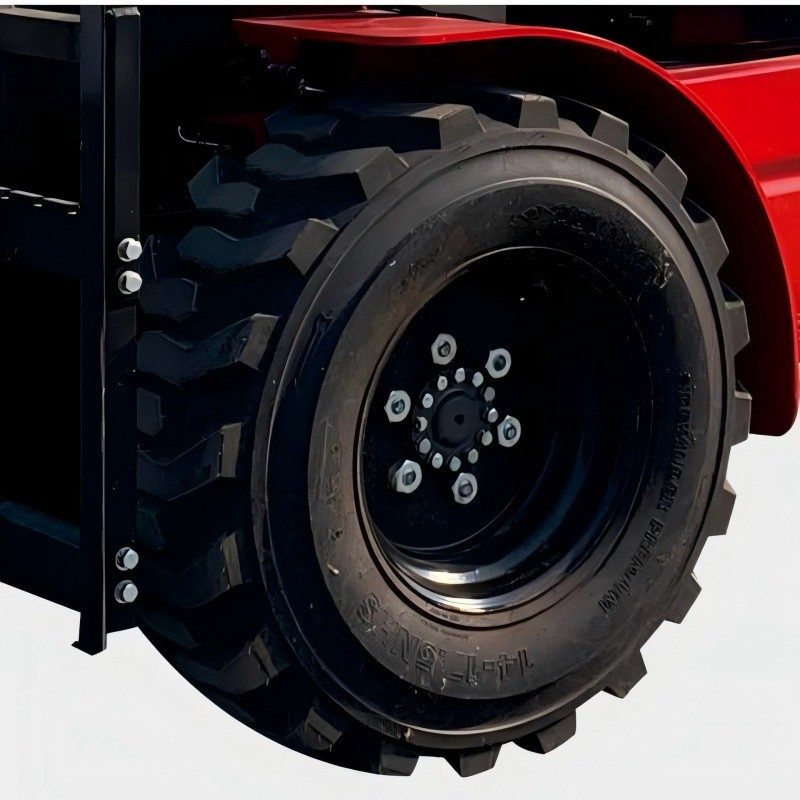

The driving tire adopts a deep pattern and large width off-road tire, which is suitable for bad road surfaces and has good off-road abilities. |
|

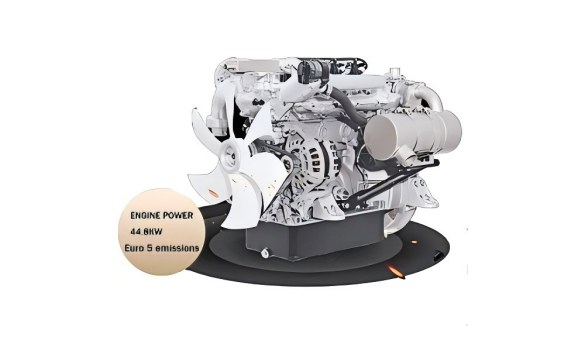

Power powerful to meet Euro 5 and EPA emission requirements |

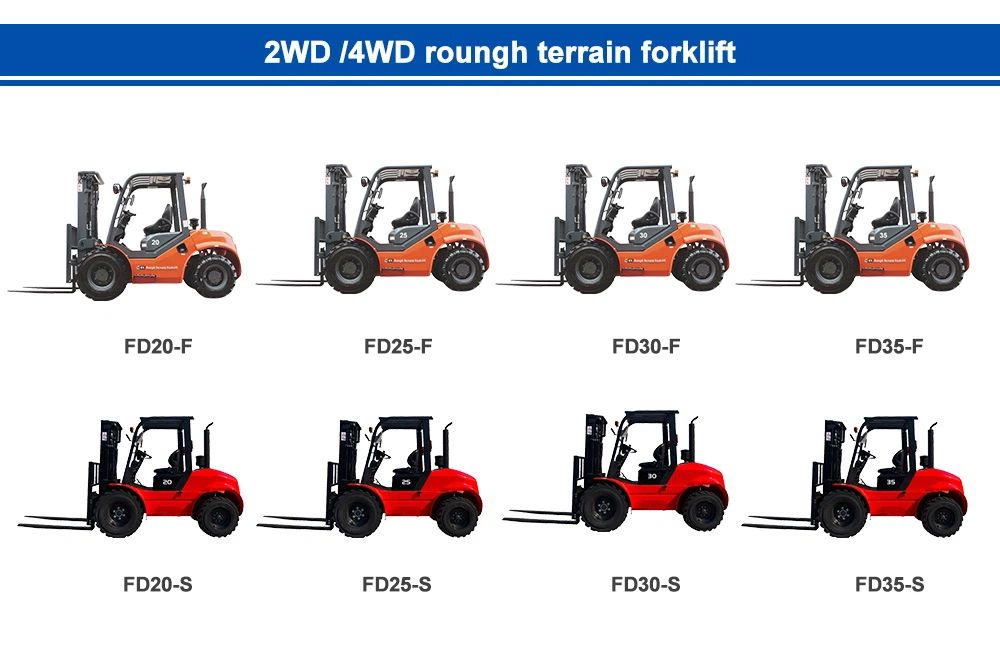

| 2.5 - 4.0 Tons 2WD Rough Terrain Forklift Parameter | |||||||
| Model | FD25-S | FD30-S | FD35-S | FD40-S | |||
| Characteristics | Driving Mode | Diesel | |||||
| Capacity | kg | 2500 | 3000 | 3500 | 4000 | ||
| Load Centre | mm | 500 | |||||
| Lift Height | mm | 3000 | |||||
| Mast Tilt Angle (F/R) | deg | 6/12 | |||||
| Front Overhang | mm | 545 | 590 | ||||
| Wheelbase | mm | 1850 | |||||
| Tread (F/R) | mm | 1250/1205 | 1300/1205 | ||||
| Performance | Service Brake | Hydraulic | |||||
| Parking Braking | Mechanical | ||||||
| Lift Speed (Full Load) | mm/s | 450 | 440 | 420 | |||
| Descent Speed | mm/s | full load 300 | |||||
| Running Speed (Without Load) | km/h | 22 | |||||
| Max Gradeability | % | 17 | 16 | 16 | 16 | ||
| Power and transmission | Engine | Model | A495BPG | A498BPG | |||
| Manufacturer | XINCHAI | ||||||
| Rated Power | Kw/r | 42/2650 | 45/2500 | ||||
| Rated Torque | Nm/r | 174/1800-2000 | 193/1600-1800 | ||||
| CC | L | 2.98 | 3.168 | ||||
| Optional | China engine, Japan engine | ||||||
| Battery | V/Ah | 12/80 | |||||
| Tyre type | Pneumatic | ||||||
| Front tyre | 12-16.5-14PR | 14-17.5-16PR | |||||
| Rear tyre | 27x10.5-15PR | 10-16.5-12PR | |||||
| Others | Service Weight | kg | 4650 | 4800 | 4950 | ||
| Fork size | TxWxL | mm | 45x122x1070 | 50x122x1070 | 50x150x1070 | ||

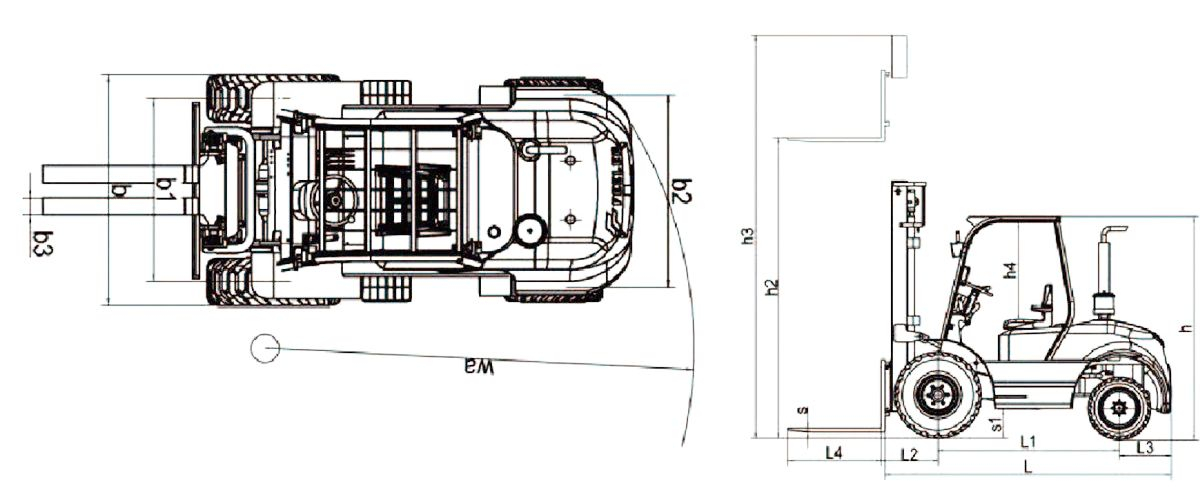

| Length (Without Fork) | mm | 2940 | 2980 | ||||
| Wide | mm | 1550 | 1650 | ||||
| Mast height | mm | 4350 | |||||
| Overhead Guard height | mm | 2210 | 2250 | ||||
| Min. Turning Radius | mm | 2910 | 2930 | ||||
| Min. Ground Clearance | Mast | mm | 220 | ||||
| Wheel base | mm | 310 | 350 | ||||
NUO SHINGTON (HANGZHOU) PRECISION MACHINERY CO., LTD. is committed to providing customers with reliable and efficient material handling equipment and solutions. It is a professional company integrating R&D, manufacturing, sales, and service. Our main products include a full range of internal combustion counterbalanced forklifts, electric counterbalanced forklifts, and electric storage equipment. We are not only committed to providing customers with excellent products in the full range of products but also providing customers with excellent services in every aspect.
Features:
1. Adopting an electro-hydraulic transmission that improves the climbing ability compared with other models: the efficiency is increased by 5%, the climbing torque is increased by 8%, the noise is reduced by 3-5 dB, and the thermal equilibrium temperature is reduced by 8-10°C.
2. Use load sensing to give priority to the hydraulic system to reduce pressure loss in the hydraulic system, save energy, and improve operating comfort.
3. Introducing advanced German technology, the unique single chain greatly improves the forward vision during work.
4. New suspension system and adjustable seat make the driver feel more comfortable and reduce fatigue during long-term operations.
forklift

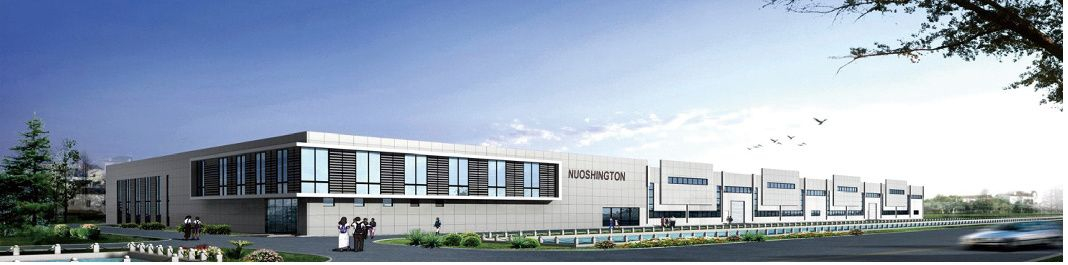

We are a manufacturer specializing in the production of handling equipment. We firmly follow the trend of international modern industrial and logistics equipment in the direction of convenience, intelligence, energy saving, and environmental protection and are determined to become a high-tech enterprise in logistics handling and strive to become a leader in logistics solutions.We have internal combustion counterbalanced forklifts, battery counterbalanced forklifts, electric logistics handling equipment, container cranes, electric hoists, etc., and forklifts can be equipped with accessories with different functions to meet the needs of customers in different places and environments. Our factory has an advanced parts processing center, robot welding equipment, a parts self-propelled hoist conveying line, a painting line, an assembly line, a whole machine performance testing line, a forklift parts test bench, and an ERP management system. Our products are widely concerned and favored by domestic and foreign customers for their beautiful appearance, high-quality and comprehensive services, safety, reliability, and cost-effectiveness and have been successfully exported to more than 100 countries and regions around the world.
Being open, vibrant, confident, and courageous, we are always warmly welcoming friends from all over the world to join efforts for a bright future.
